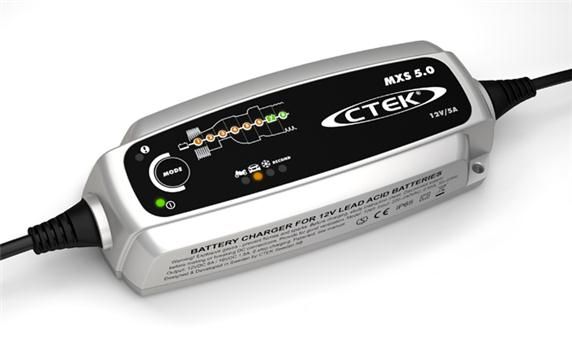

CTEK MXS 5.0 12V Battery Charger
The MXS 5.0 offers features such as battery diagnosis that shows receive and retain of a charge from the battery, reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, a mode for optimised charging during cold winter days and the charging of demanding AGM batteries . The unique display allows the user to monitor the entire charging process.
The MXS 5.0 is a fully automatic 8-step charger that delivers selectable 0.8A or 5A to 12V batteries from 1,2-110Ah and is suitable for maintenance charging up to 160Ah. The charger is splash and dust proof (IP 65 classified), designed to protect vehicle electronics and non-sparking, reverse polarity protected and short-circuit proof.
Features
Auto: Fully automatic for optimal charging
12V: For all lead-acid batteries
Step 7: Fully charged battery
Step 8: Maintenance charging
COLD/AGM: Charging in cold conditions and AGM batteries
RECOND: Recondition of deeply discharged batteries
Specification
| olt | 12V |
| Rated Voltage AC | 220–240VAC, 50–60Hz |
| Charging voltage | SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V |
| Min battery voltage | 2.0V |
| Charging current | 5A max |
| Current, mains | 0.65A rms (at full charging current) |
| Back current drain | <1Ah/month |
| Ripple | <4% |
| Ambient temperature | -20°C to +50°C, output power is reduced automatically at high temperatures |
| Charger type | 8 step, fully automatic charging cycle |
| Battery types | All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL) |
| Battery capacity | 1.2–110Ah up to 160Ah for maintenance |
| Dimensions | 168 x 65 x 38mm (L x W x H) |
| Insulation class | IP65 |
| Weight | 0.6kg |
| Sendle Length | 1 |
|---|---|
| Sendle Width | 1 |
| Sendle Depth | 1 |
